ANCOR Marine-Grade Coax Cable (Bulk)

Premium-quality coaxial cable has 96% braid for best signal strength and least interference.

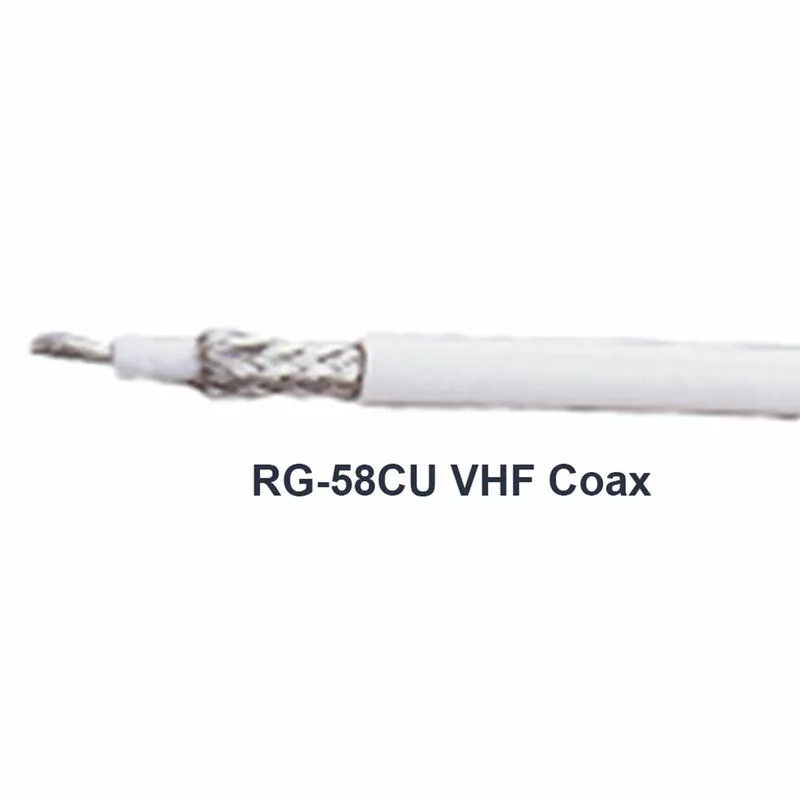

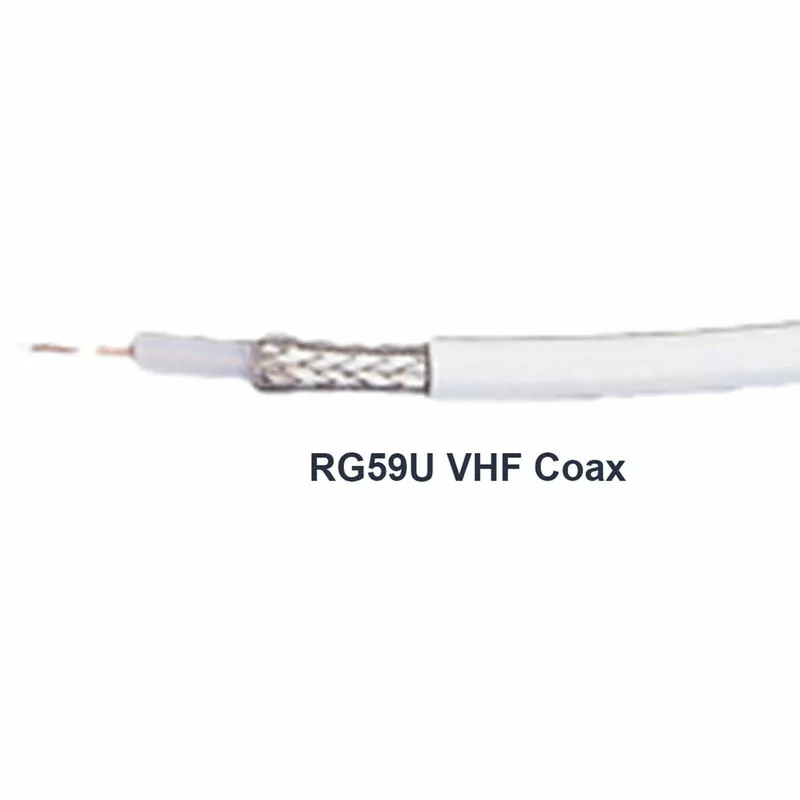

Tinned copper wire is used for the conductor and shield, insulated by a UV-inhibited white jacket. Use RG-58CU for interconnecting electronic equipment, RG-59U for TVs and some SAT NAVs, RG-8X for VHF runs less than 50′ and RG-213 for VHF runs over 50′. Price is per foot.

• Features signal loss ratios of up to 50 percent less than other brands of coaxial cable
• Tinned copper center conductor as well as tinned copper outer braid for corrosion resistance and easy soldering
• 96 percent braid for best signal strength and least interference, with UV inhibited white jacket for longest life

Specifications

Wire Type	RG58C/U	RG59U	RG8X	RG213
Insulation Material	PVC*	PVC	PVC	PVC*
Nominal O.D.	3/16″ 4.8mm	1/4″ 6.4mm	1/4″ 6.4mm	13/32″ 10.3mm
AWG	20	23	16	13
Conductor Stranding	19/33	Solid**	19/29	7/21
Braid Coverage	96%	96%	96%	96%
Weight per 1000′	26lb.	36b.	40b.	110b.
Impedance (Ohms)	50	75	50	50
Capacitance/Ft.	30.8 pF	20.5 pF	26.0 pF	30.8 pF
Attenuation/100′
@50MHz	3.3dB	2.4dB	2.5dB	1.3dB
@100MHz	4.9dB	3.4dB	3.7dB	1.9dB
@1000MHz	21.5dB	12.0dB	13.5dB	8.0dB
Velocity of Propagation	66%	66%	78%	66%
* Non-contaminating insulation	** Copperweld
