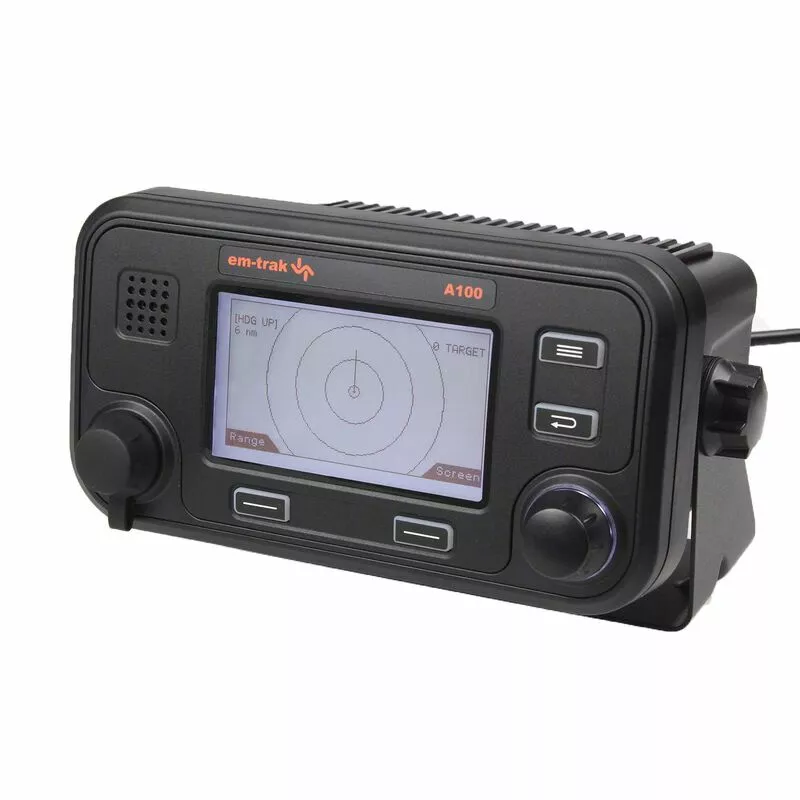

EM-TRAK MARINE ELECTRONICS A100 AIS Class A Transceiver

Internationally certified to the highest standards including USCG and FCC approval.

The em-trak Automatic Identification System (AIS) Class A A100 is the world’s best selling commercial grade Class A AIS. The A100 is the preferred choice of thousands for commercial mariners worldwide. Designed in Europe and manufactured by one of the USA’s largest companies, the A100 carries a three-year manufacturer’s warranty.

Key Features

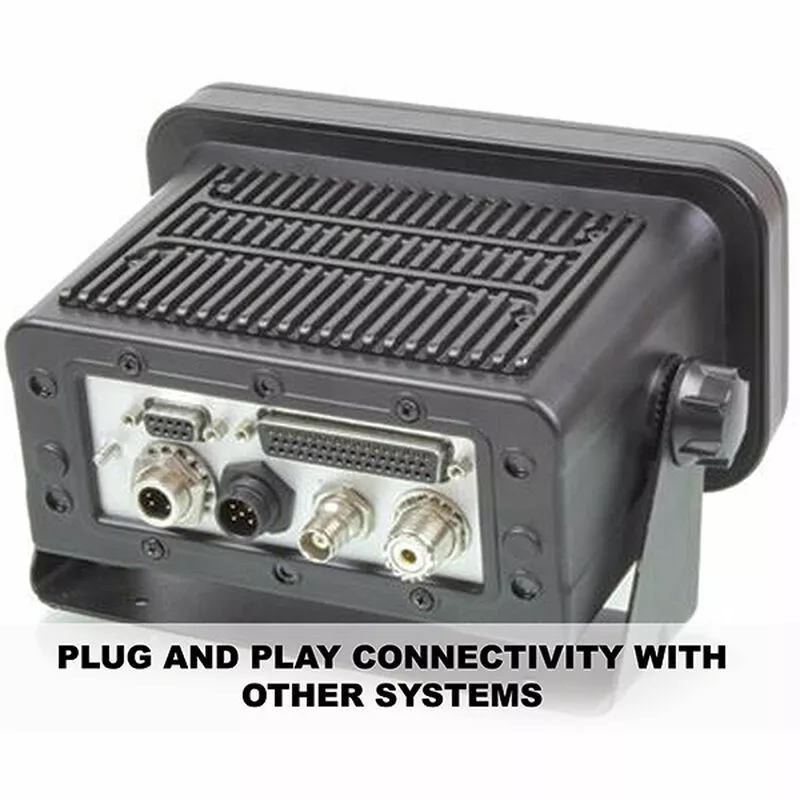

• Easy to install: Small footprint with plug-and-play connectivity to existing bridge systems
• Proven reliability: Ruggedised design ideal for even the toughest professional environment

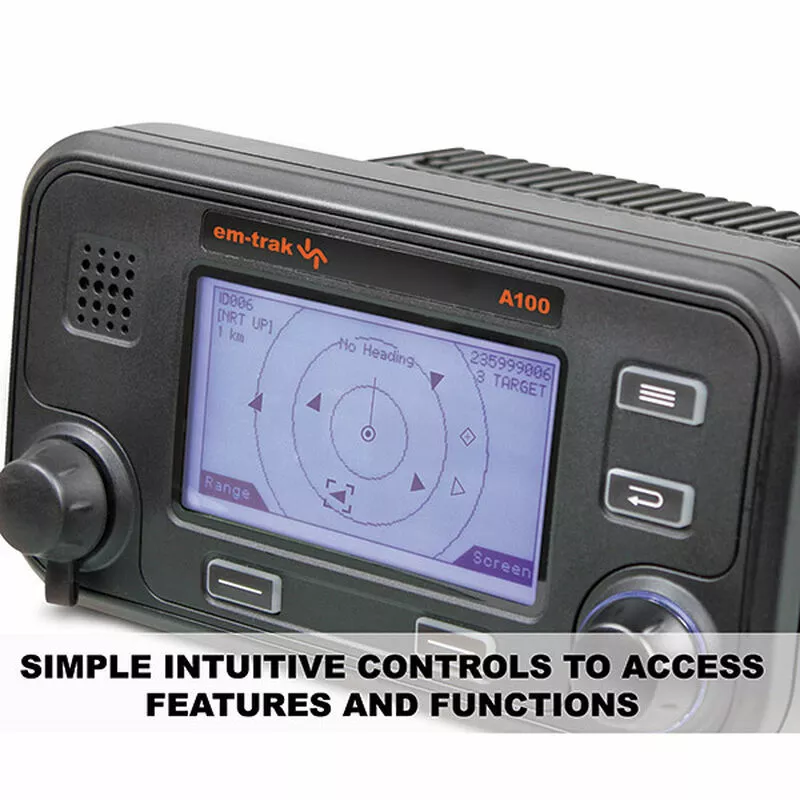

• Easy to use: Simple, intuitive controls to access all features and functions
• Proven performance: Advanced core technology guarantees superior receive and transmit performance

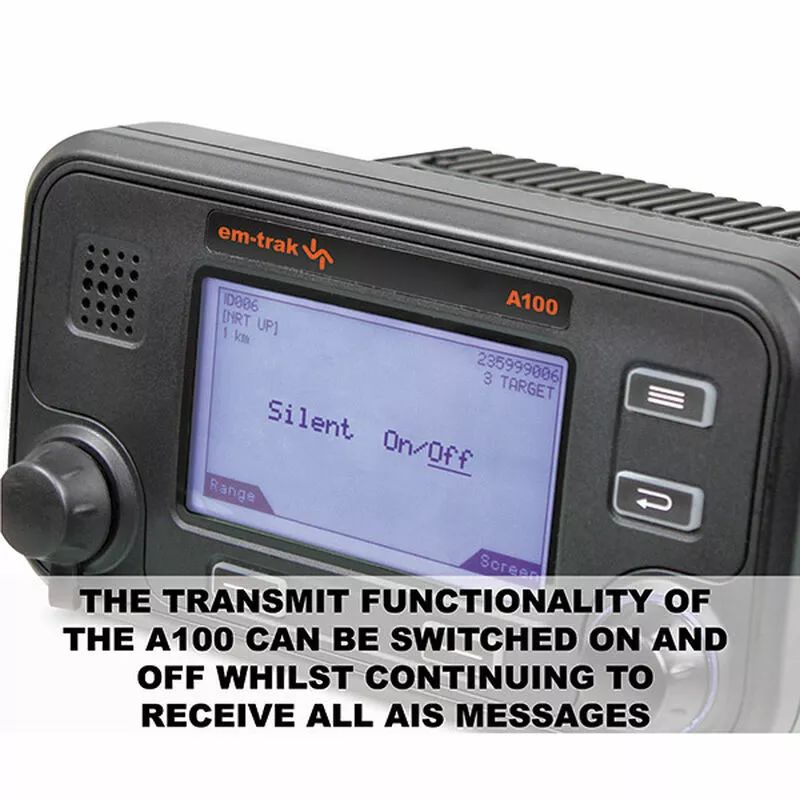

• Silent mode: The transmit functionality of the A100 can be switched on and off while continuing to receive all AIS messages
• Compact and powerful: The A100 is the smallest, easiest to install and operate Class A AIS unit on the market

Specifications

• AIS Type: Class A Transceiver
• Display Type: Monochrome LCD
• Antenna: GPS antenna with 33′ cable included
• Amperage: 0.78A @ 12V DC
• Voltage: 12-24V
• Dimensions: 6 7/8″W x 4 3/16″H x 6 1/4″D
• Waterproof Rating: IP52
• Warranty: One year

Data Interfaces

• RS232 38.4k baud bi-directional
• (PC connection)
• IEC61162-2 bi-directional interfaces x 3
• IEC61162-1/2 sensor inputs x 3
• DGPS correction data input (ITU-R M.823-2)
• NMEA 0183 compliant

Certifications

• Fully compliant to IMO international AIS standards
• Dual deep sea and inland waterway
• IMO/SOLAS, FCC, Industry Canada, CCNR
• CE marking under R & TTE directive for Europe
• Marine Equipment Directive (MED) compliant

What’s in the Box

• A100 AIS Class A Transceiver
• Panel mount brackets
• Mounting template
• Junction box
• Data cable (1m)
• GNSS antenna
• Power cable (2m)
• Fasteners
