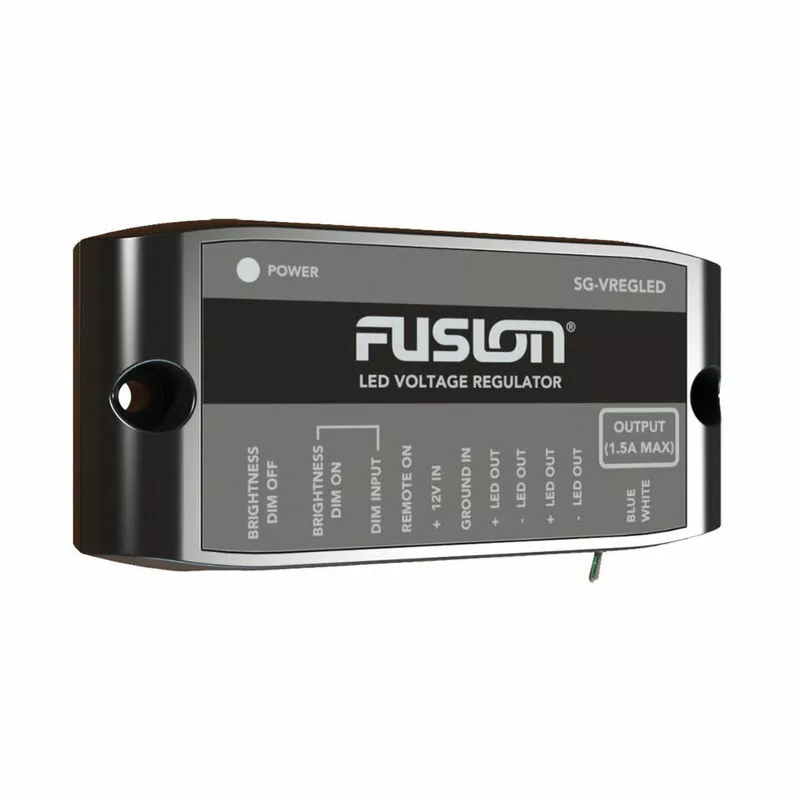

FUSION SG-VREGLED Voltage Regulator for Signature Series

Introducing the SG-VREGLED Signature Series voltage regulator.

The regulator provides a constant voltage supply to the connected Signature speaker or subwoofer installation, ensuring stable LED illumination for up to 10 speakers/subwoofers.

Including smart protection against output short circuits and input over voltage.

Control options include: Power On/Off for illumination, colour switching between Blue or White and a dimmer function.

A pluggable terminal block connector ensures installation, or the addition of more speakers is as easy as plug-n-play.

The Signature voltage regulator is covered by a 1-year limited consumer warranty.

Product Specifications:

• Input Voltage: 10.8 – 16 VDC
• Input Current: 3 Amp Maximum
• Output Voltage: 5 – 15 VDC (Adjustable)
• Output Current: 1.5 Amp Maximum
• Water resistance: IPx2 when correctly mounted
• Mounting Dimensions: Length 110mm (4-5/16″) x Width 62.4mm (2-7/16″) x Height 23.5mm (15/16″)
