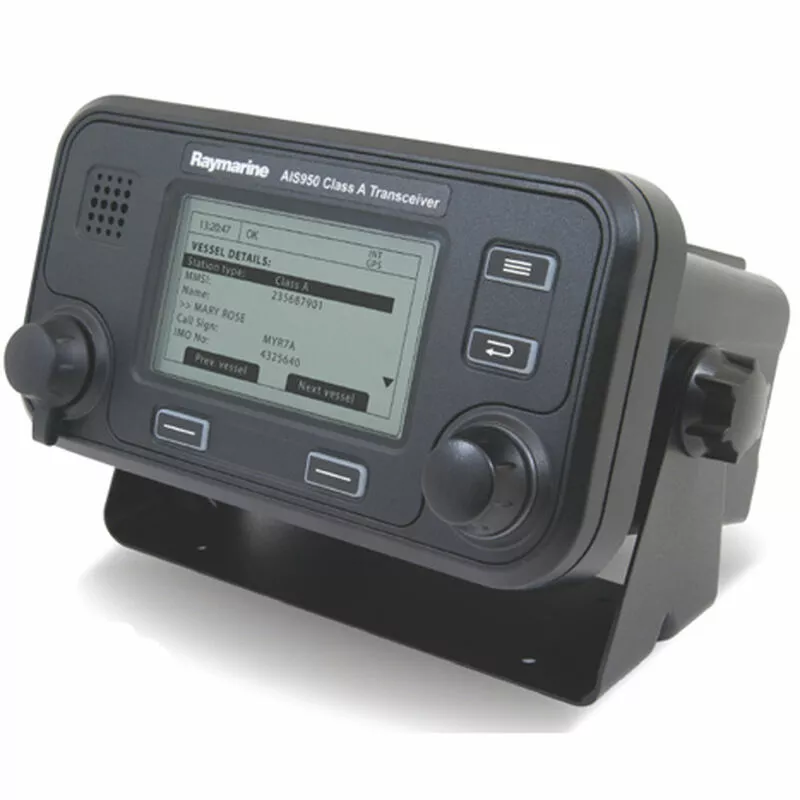

RAYMARINE AIS950 Class A Transceiver

AIS950 Class A Transceiver is approved to deep sea and inland waterway standards and offers a highly intuitive user interface.

Operating in the VHF maritime band, the AIS (Automatic Identification System) system enables the wireless exchange of navigation status between vessels and shore-side traffic monitoring centers. Commercial ships, ocean-going vessels and recreational boats equipped with AIS transceivers broadcast AIS messages that include the vessel’s name, course, speed and current navigation status.

Key Features

• Transmit your position: Fitting a Class A AIS device ensures you are seen by other AIS equipped vessels.
• Vessel Protection: As part of a suitably configured network, AIS enables owners to be alerted to unauthorised vessel movements.
• Port management: AIS can be used as a highly effective port management tool allowing easy identification, control and direction of vessels.
• Coastal surveillance: AIS and radar can be fused to create effective and efficient coastal tracking, surveillance and safety systems.

Specifications

• AIS Type: Class A Transceiver
• Display Type: Monochrome LCD
• Screen Resolution: 240 x 128
• Antenna: GPS antenna with 33′ cable included
• Dimensions: 8 1/4″W x 4 1/8″H x 5 7/16″D
• Voltage: 12-24V (10.8 to 31.2V DC)
• Amperage: 900mA at 12V and 500mA at 24V (peak)
• Data Interface: NMEA 0183
• Waterproof Rating: IP52
• Warranty: Three years (with product registration)

What’s in the Box

• AIS950 Class A AIS Transceiver
• Panel mount brackets
• Mounting template
• Junction box
• Data cable (1m)
• GPS antenna
• Power cable (2m)
• Fasteners
