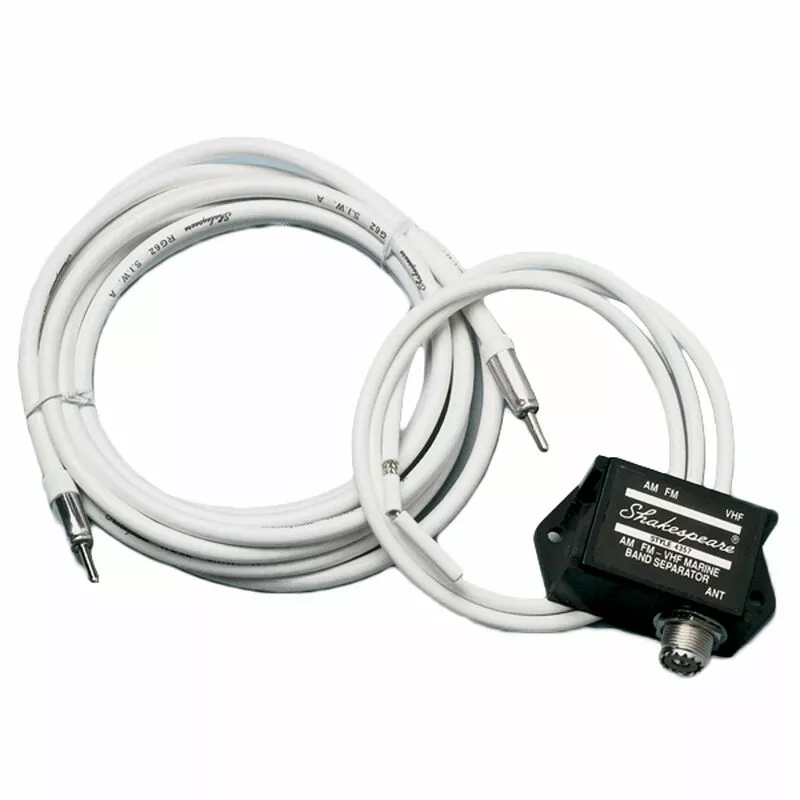

SHAKESPEARE 4357-S AM/FM/VHF Marine Band Separator

Eliminate the need for separate AM/FM antennas and operate AM/FM and VHF radios at the same time without interfering with VHF radio performance.

The Style 4357-S is a solid-state, passive device that filters AM/FM signals from any VHF antenna, directing them to an AM/FM radio. The Band Separator lets you use both signals at the same time, without purchasing a separate AM/FM antenna. The device’s pick off point is not in line with the power going to the VHF radio and will not cause harm to the AM/FM radio when transmitting a VHF signal.

The 4357-S is ideal for use with low-profile antennas such as the Shakespeare Style 5215 Squatty Body® and Shakespeare Styles 5240-R and 5241-R.

Key Features

• Includes 10′ RG-62 coax with Motorola plug installed
• Also includes 3′ RG-58 cable for VHF transceiver connection
• PL-259 included, not installed for easy passage of cable through bulkheads

What’s in the Box

• Band Separator Unit
• PL-259 Connector
• RG-62 Cable, 10’, with Motorola type plugs installed
